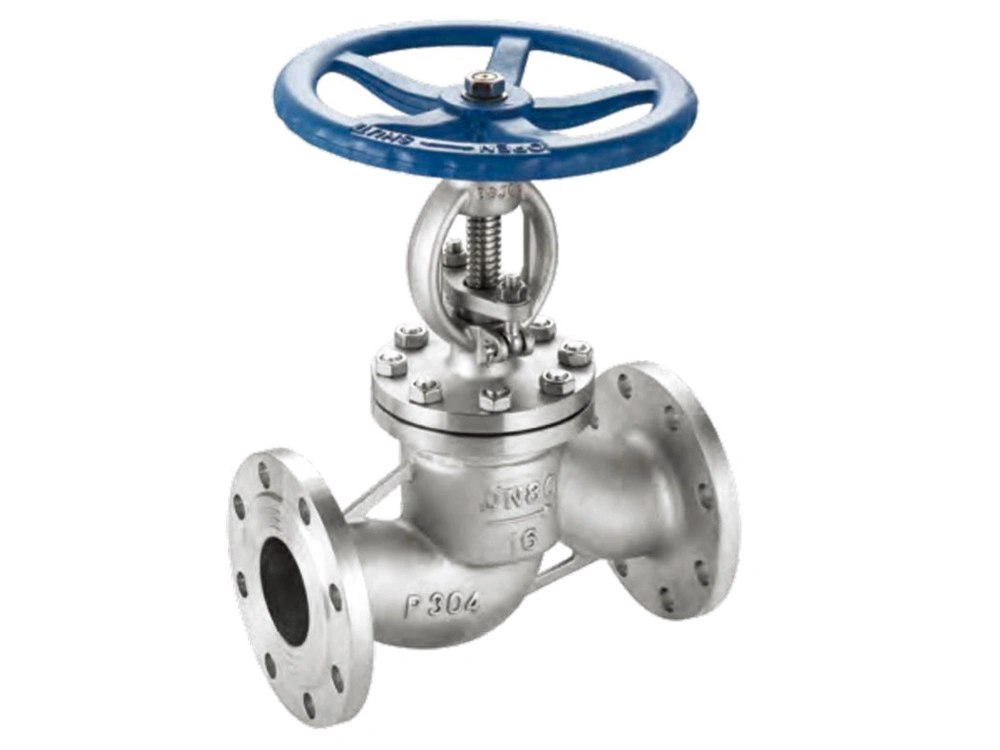

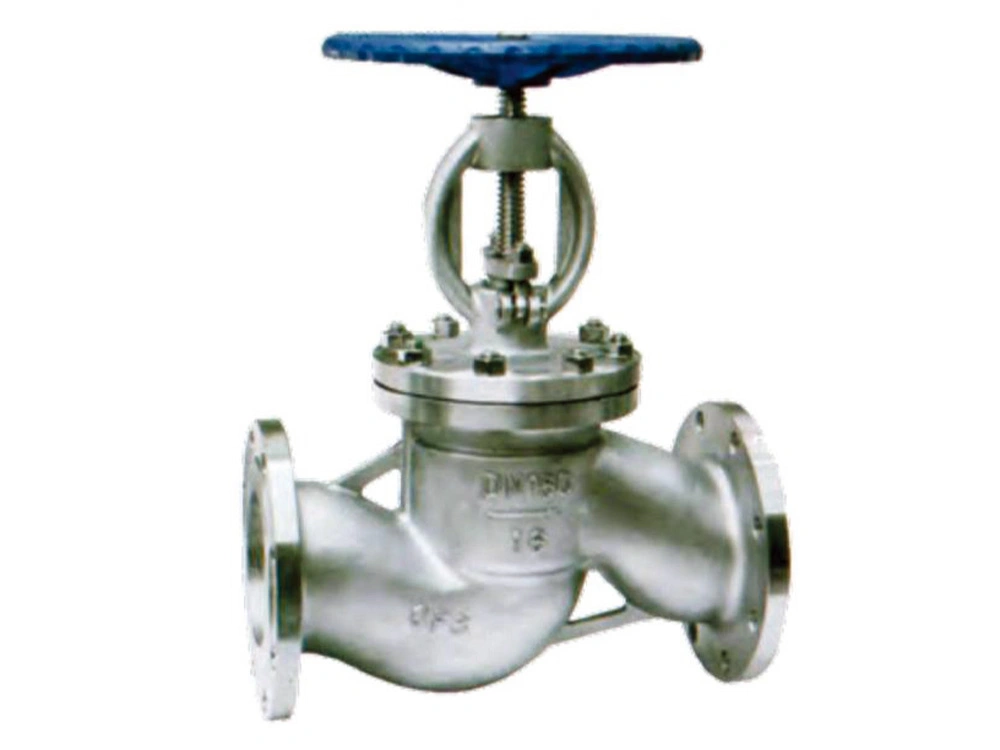

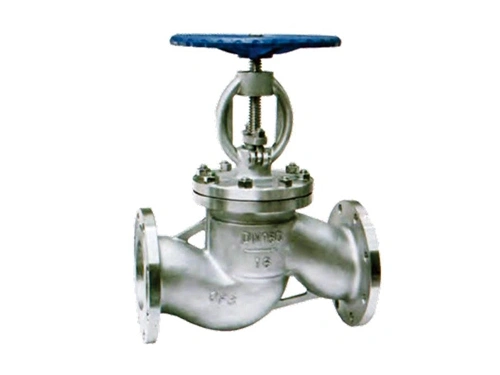

Stainless Steel Bolted Bonnet Globe Valve (GB Globe Valve)
- Design & Manufacture: GB/T 12237
- Face-to-Face: GB/T 12221
- Flange End: JB/T79
- Inspection & Testing: JBf T9092
- Surface Treatment: Pickling, Passivation, Polishing (or as per customer request)
- Operating Temperature: ≤ 120°C
- Suitable Media: Water, Steam, Oil, Gas, Acids, Alkalis, etc.
Test Pressure
| Test Item | Shell Test | Seal Test | Back Seal Test | Air Seal Test | |
| Medium | Water | Air | |||
| Nominal Pressure (MPa) | 1.6 | 2.4 | 1.8 | 1.8 | 0.6 |
| 2.5 | 3.8 | 2.8 | 2.8 | ||
| 4.0 | 6.0 | 4.4 | 4.4 | ||
| 6.4 | 9.6 | 7.0 | 7.0 | ||

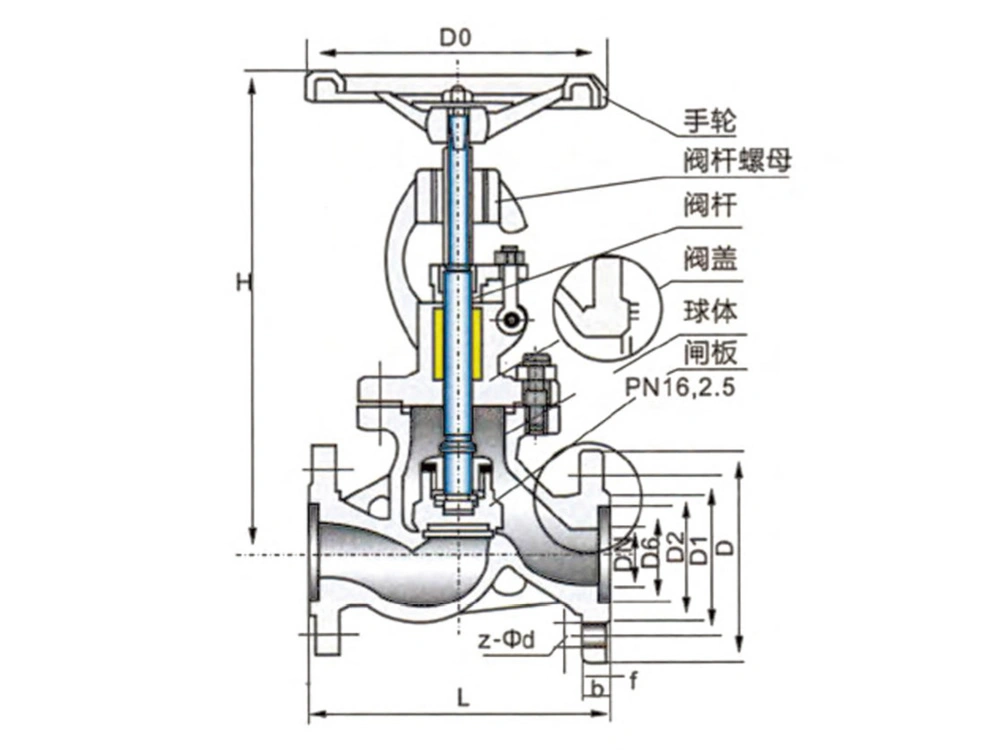

Valve Parts
| Component | Material | |||
| Body/ Bonnet | CF8 | CF8M | CF3M | WCB |
| Wedge | Cf8 | CF8M | CF3M | WCB |
| Gland | CF8 | CF8M | CF3M | WCB |
| Stem | F304 | F316 | F316L | 2CR13 |
| Stem Nut | Aluminium Bronze | |||
| Packing/Gasket | PTFE/ Graphite | |||
| Bolt | Stainless Steel | 35CrMoA | ||
| Nut | Stainless Stee | 45, 35 CrMoA | ||
| Handle | Cast Steel | |||
