Model: NSQ

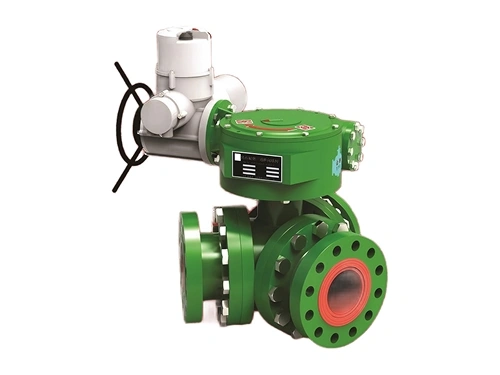

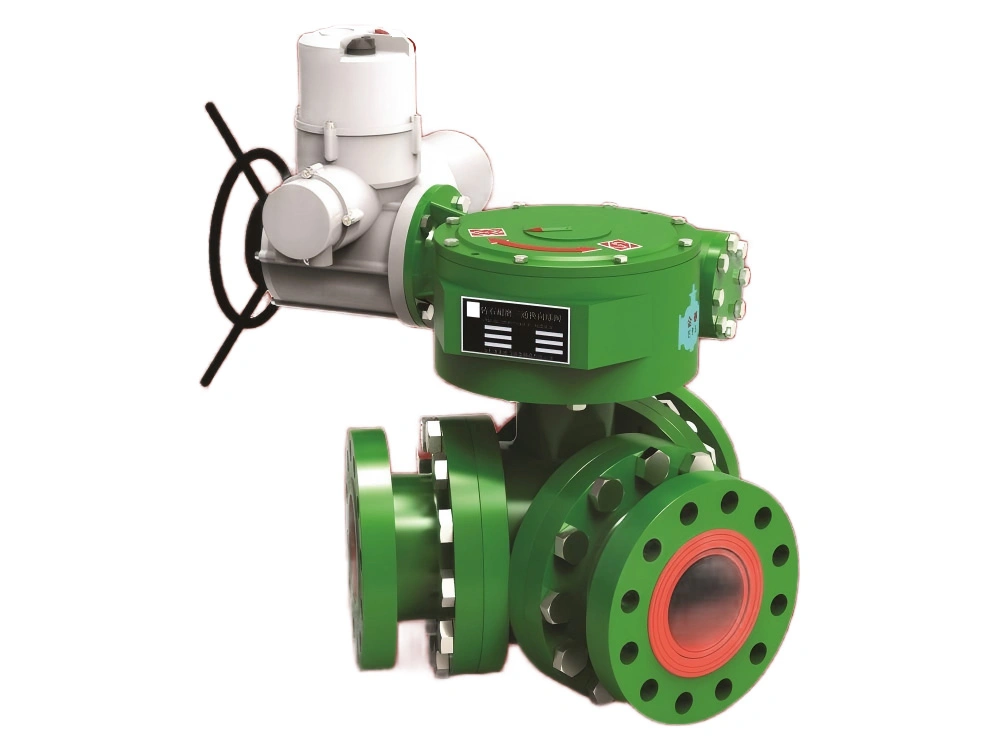

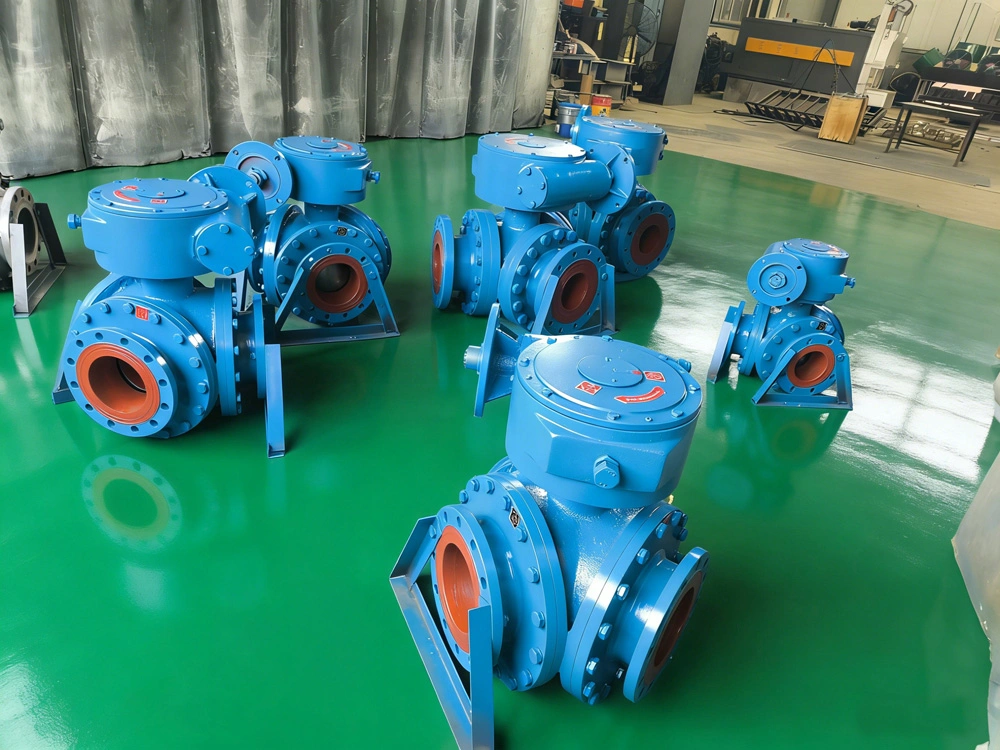

Cast Basalt Lined 3-Way Ball Valve (Large Diameter Fused Cast Basalt Lined Valve, 80-500 mm)

• Nominal Diameter: DN80-DN500
• Pressure Rating: PN1.0 – PN25 MPa
• Flange End: GB/T 9124, ANSI B16.5
• Suitable Media: Slurry
• Operating Temperature: -40 to 120℃
• Method of Operation: Manual, Electric, Pneumatic, Hydraulic
• Inspection & Testing: GB/T 13927, API 598

The “flow director” for abrasive pipeline systems
In complex industrial pipeline systems, stable media transfer and accurate flow switching are essential to maintaining operational efficiency and system reliability. The cast basalt lined 3-way ball valve is designed to control and redirect slurry flow between multiple pipeline channels and reduce material buildup and blockage inside the system. It is known for its wear-resistant structure and multi-directional flow capability. The valve is particularly suitable for abrasive slurry conveying systems where conventional switching methods may lead to media retention, pipeline clogging, or excessive wear. It also comes handy in simplifying pipeline layouts and improve flow switching efficiency in demanding industrial applications.

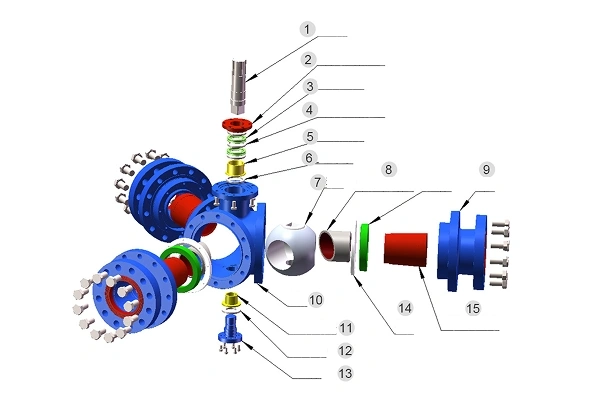

No.	Component	Material	Quantity
1	Upper Stem	40Cr	1
2	Stem Seal Gland	WCB	1
3	Stem Seal Ring	PU	2
4	Upper Stem Bushing	ZCuZn40Pb2	1
5	Upper Adjusting Shim	WCB	1
6	Body	WCB	1
7	Ball	WCB	1
8	Ball Wear Sleeve	Cast Stone	2
9	Retaining Ring	Q235	3
10	Gasket	PU	3
11	Bonnet Wear Sleeve	Cast Stone	3
12	Bonnet	WCB	3
13	Lower Stem Bushing	ZCuZn40Pb2	1
14	Lower Adjusting Shim	WCB	1
15	Lower Stem	40Cr	1

• Replaces multiple conventional valves with a single unit
  One 3-way ball valve can perform the function of two to three conventional valves. This reduces overall installation space, simplify pipeline layouts, and lower potential leakage points. Its streamlined internal flow passage also allows smoother media transfer during switching, helping prevent material retention and blockage inside the pipeline system.
• Dual wear-resistant lining options
  The flow channel lining is available in two high-performance materials. One option uses fused cast basalt lining from the Shandong Peninsula, known for its strong wear and corrosion resistance. The other uses our patented hydrolysis-resistant wear-resistant steel material, developed to reduce material erosion and extend valve service life under demanding slurry conveying conditions.

PN1.0MPa

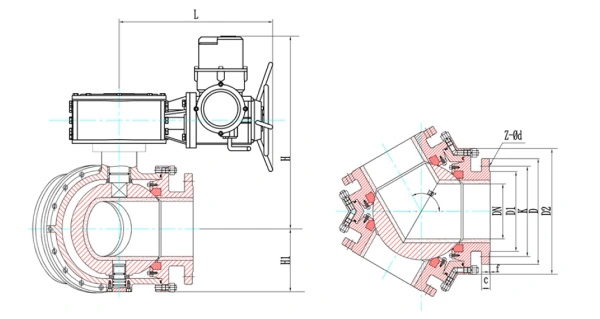

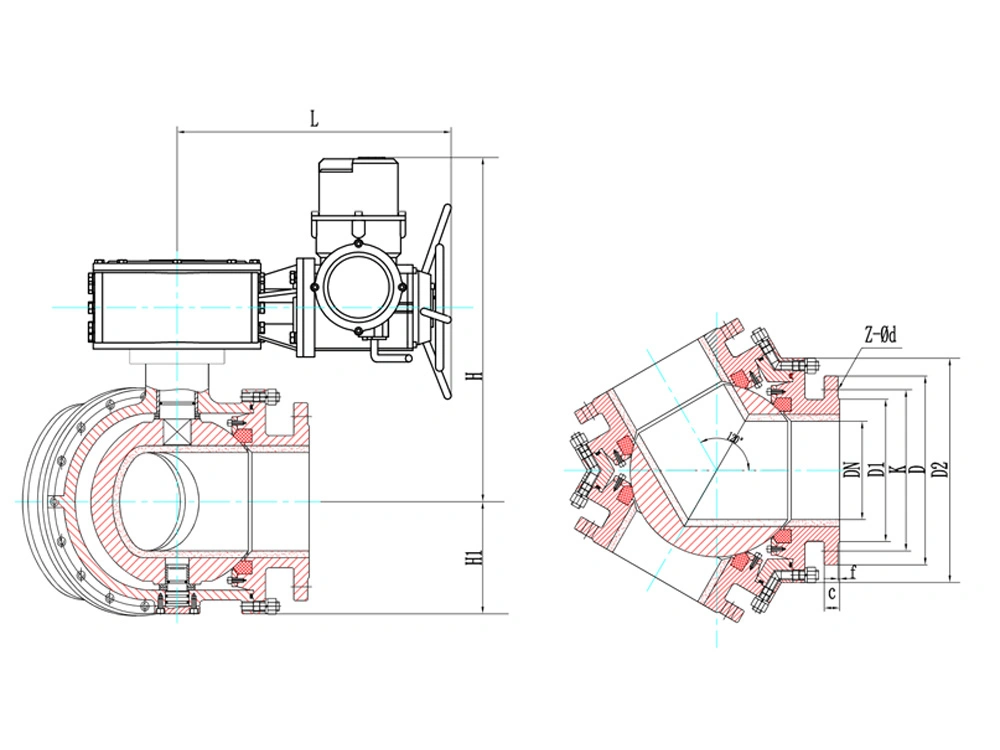

Size		L	H	H1	D	K	D1	D2	C	f	Z-Ød
DN	NPS	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
100	4"	616	600	150	220	180	156	300	21	3	8-Ø18
125	5"	616	614	160	250	210	184	320	21	3	8-Ø18
150	6"	616	629	176	285	240	211	352	21	3	8-Ø22
200	8"	685	699	214	340	295	266	428	25	3	8-Ø22
250	10"	685	729	244	395	350	319	488	25	3	12-Ø22
300	12"	685	759	277	445	400	370	554	29	4	12-Ø22
350	14"	855	875	325	505	460	429	650	29	4	16-Ø22
400	16"	855	915	365	565	515	480	730	34	4	16-Ø26
450	18"	855	964	402	615	565	530	804	34	4	20-Ø26
500	20"	855	1004	443	670	620	582	885	39	4	20-Ø26

PN1.6MPa

Size		L	H	H1	D	K	D1	D2	C	f	Z-Ød
DN	NPS	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
100	4"	616	600	150	220	180	156	300	21	3	8-Ø18
125	5"	616	614	160	250	210	184	320	21	3	8-Ø18
150	6"	616	629	176	285	240	211	352	21	3	8-Ø22
200	8"	685	699	214	340	295	266	428	25	3	12-Ø22
250	10"	685	729	244	405	355	319	488	25	3	12-Ø26
300	12"	685	759	277	460	410	370	554	29	4	12-Ø26
350	14"	855	875	325	520	470	429	650	29	4	16-Ø26
400	16"	855	915	365	580	525	480	730	34	4	16-Ø30
450	18"	855	964	402	640	585	548	804	34	4	20-Ø30
500	20"	855	1004	443	715	650	609	885	39	4	20-Ø33

PN2.5MPa

Size		L	H	H1	D	K	D1	D2	C	f	Z-Ød
DN	NPS	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
100	4"	616	600	150	235	190	156	300	22	3	8-Ø22
125	5"	616	614	160	270	220	184	320	22	3	8-Ø26
150	6"	616	629	176	300	250	211	352	24	3	8-Ø26
200	8"	685	699	214	360	310	274	428	25	3	12-Ø26
250	10"	685	729	244	425	370	330	488	28	3	12-Ø30
300	12"	685	759	277	485	430	389	554	32	4	16-Ø30
350	14"	855	875	325	555	490	448	650	35	4	16-Ø33
400	16"	855	915	365	620	550	503	730	38	4	16-Ø36
450	18"	855	964	402	670	600	548	804	38	4	20-Ø36
500	20"	855	1004	443	730	660	609	885	42	4	20-Ø36

PN4.0MPa

Size		L	H	H1	D	K	D1	D2	C	f	Z-Ød
DN	NPS	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
100	4"	616	600	155	235	190	156	310	24	3	8-Ø22
125	5"	616	614	165	270	220	184	330	26	3	8-Ø26
150	6"	685	659	181	300	250	211	362	28	3	8-Ø26
200	8"	685	699	219	375	320	284	438	33	3	12-Ø30
250	10"	855	794	254	450	385	345	508	33	3	12-Ø33
300	12"	855	824	286	515	450	409	572	39	4	16-Ø33

PN6.3MPa

Size		L	H	H1	D	K	D1	D2	C	f	Z-Ød
DN	NPS	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
100	4"	616	600	155	250	200	168	310	28	3	8-Ø26
125	5"	616	614	165	295	240	184	330	28	3	8-Ø30
150	6"	685	659	181	340	280	240	362	30	3	8-Ø33
200	8"	685	699	219	415	345	300	438	35	3	12-Ø36
250	10"	855	794	254	470	400	352	508	38	3	12-Ø36
300	12"	855	824	286	530	460	412	572	42	4	16-Ø36

PN10.0MPa

DN	NPS	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
100	4"	576	587	182	265	210	162	364	40	3	8-Ø30
125	5"	710	668	191	315	250	188	382	40	3	8-Ø33
150	6"	710	668	191	355	290	218	382	44	3	12-Ø33
200	8"	756	850	257	430	360	285	514	52	3	12-Ø36
250	10"	767	850	279	505	430	345	558	60	3	12-Ø39
300	12"	818	850	323	585	500	410	645	68	4	16-Ø42

Note:
1. Valve drawings shown are for reference only.
2. Product specifications and technical data may change due to design improvements or product updates. Please contact our sales team for the latest information.
3. Custom designs and specifications are available upon request.
